BRIDGE CRANES

Bridge cranes in Beinasco

Bridge cranes


In this field, Cerrato srl offers several possibilities here all the solutions for this type of equipment.
Download the commercial catalog

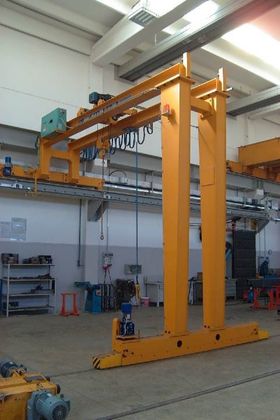

Gantry crane

Mainly used outdoors or when the only possibility of the rail support is a ground beam.

Gantry cranes lame

mainly used for outdoor applications or when there is the possibility of supporting the rails at the same height
Standard bridge cranes in Beinasco

A Standard Bridge Cranes


The lifting system can be single or double girder with resting or suspended solution, sliding on rails. The plant consists of the following components:
  • Bearing beam which is calculated in function of the class they belong to and can be profiled in electro-tipping
  • Bridge sliding warheads, which are rated according to the scale and gauge
  • The motors can be operated with variable frequency drives to control acceleration and deceleration; the bridge is done by scrolling wheel units with flanged housings for services up to class FEM M6 (3m)
  • Translation: In the "single-beam" solution, the cart and hoist are one group and can be reduced to allow space to make the most of the hook run. In the "double-girder" solution, the truck is built to support the hoist in the resting or suspended version, when you need to make the most of the height of the hook
  • Lifting: Can be applied to the solution with wire rope hoist or chain
  • Electrical equipment: The components are wired within a framework and sized according to engine power and the movements required. When prompted, an inverter can be mounted to manage the acceleration and deceleration of the various movements
  • Commands with low voltage control panel or remote control
  • Standard paint with yellow paint RAL 1007

Special Bridge Cranes

These are hard classified according to FEM STANDARDS with M6 class (3m) - M7 (4m) - M8 (5m) for mechanisms and A6-A7-A8 for structures. They are designed and built for intensive use and high flow rates and their size is determined by the type of service for which they are intended - the lift assembly, the wheel groups, blocks etc. They are specially designed for specific services for which they are intended, in order to obtain adequate performance and facilitate any maintenance operations. The crane bridge can be equipped with special equipment under specific-hook with sling bars, magnets, suction cups, buckets hydraulic or mechanical and electronic systems for the control of accelerations and speeds, weighing installations, and be operated from the ground or from the cab.

In Automatic and Semi-automatic Bridge Cranes

Construction crane bridge with automatic operation for handling and storing pallets, boxes or bundles of material. These systems hosted by PLCs are an excellent solution for cyclical and repetitive movements.

Gantry Crane

Mainly used outdoors or when the only possibility of the rail support is a ground beam.

Gantry Cranes Lame

Mainly for external use or when there is the possibility of supporting the rails at the same height.

Come and Visit Us in Via Manzoni in Beinasco
